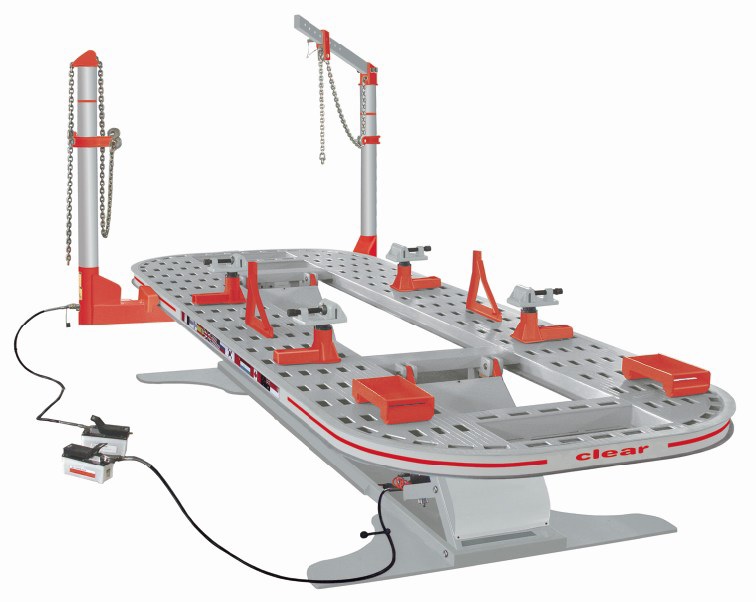

FEATURES
· Platform is cutted by large-scale numerical control panel once shaping and smooth cutting.
· Platform be made of high-quality manganese steel plate by carbon dioxide gas shielded arc welding from welding, high strength, rigidity, and many technology-holes can be easily arranged anchor device.
· The vertical lift platform can be raised to a height of 300-1150mm that is accessible to any accident handing vehicle without cranes, taking care of different heights.
· Reasonable platform height makes operation conveniently. Humanized for the main clamp can realize the adjustment of main clamp upper and lower, before and after between the least bit.
· The wealth of tools to prepare, for the arbitrary choice of the operator.
· At the same time, two-pulling towers composite pulling, and more reflect the superiority of partial
pull-out operation.
SPECIFICATION VIEW
Platform Length | 5600 mm |
Platform Width | 2200 mm |
Full platform lifting Platform Height | 300 - 1050 mm |
Pulling Tower Max. Tension | 96 kN (10 ton x 2 towers) |
Warranty 1 year Hydraulic Pressure | 70 Mpa |
Pneumatic Pressure | 0.8 Mpa |
Tower Working Range | 360 degree |
Max. Lifting Weight | 3500 kgs |
Gross Weight | 2200 kgs |
