AUTO PRO-UP | DBL-STAR STD

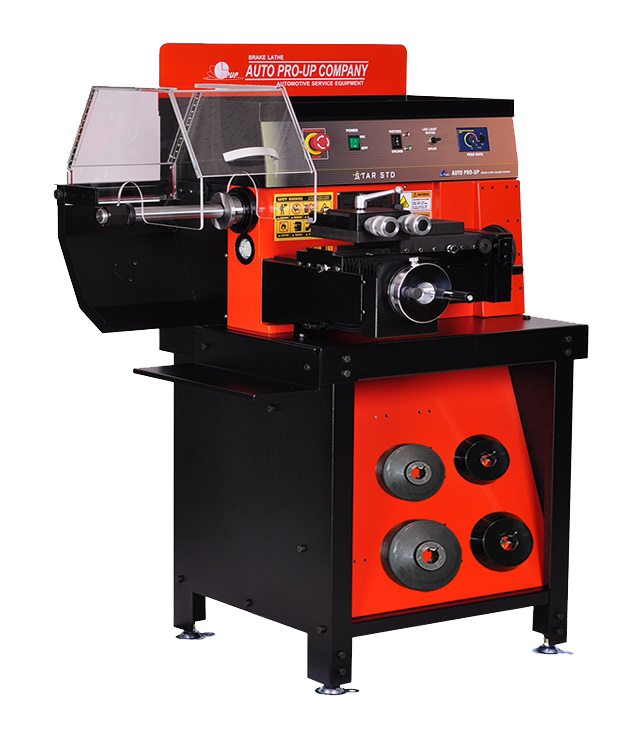

AUTO PRO-UP  Brake Disc Lathe with LED (for Disc & Drum)

FEATURES

  • The Best Selling Combination Bench Brake Lathe (for Rotor & Drum)
  • High Quality Component that is made in Korea
  • Full Adapter Kit
  • Precise Machining by Powerful 1HP Motor
  • Fully Adjustable Feed Rate
  • Clear LED Safety Shield & Drum LED Worklight

SPECIFICATION VIEW

  • Spindle Motor: Geared One (1) Horsepower up to 110RPM
  • Feed Motor: Two (2) Geared AC Motor
  • Arbor Shaft Diameter: 30mm (35mm is also available as an optional)
  • Max. Rotor Diameter: 420mm
  • Max. Rotor Thickness: 50mm
  • Max. Drum Diameter: 580mm
  • Max. Drum Depth: 140mm
  • Max. Rotor/Drum Weight: 70kg (154lbs)
  • Net Weight: 250KG / Gross Weight: 265KG
  • Packing Dimensions: W:1,100 D:840 H:1,500
