FEATURES

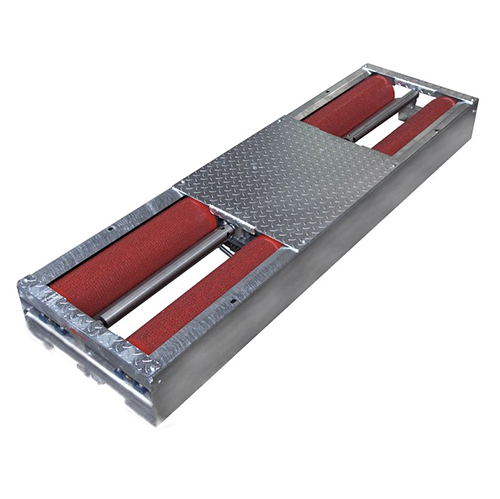

- Galvanized, enclosed roller set
- 205 mm rollers with welded profile surface
- Test width: 800 mm to 2200 mm (optional 800 up to 2.800 mm)
- Height adjustment screws
- Wear resisting electronic measuring system DMS
- 50 mm sensory rollers in stainless steel
- Prepared for retro-fitting of weighing device
- Modular system, all roller sets can be extended to test lanes
- Compact electric / switchbox, prepared for upgrade
- Drive-over axle load 4,0 to (optional 5 t)
- Brake force 4,5 kN (optional 6 kN und 10 kN)
- Equipped as standard with drive-off device
- Manual / Automatic mode
- Delayed switch-on, start-up monitoring
- Test program for electronic parking brakes
- Lockable main switch
- Optionally with large easily read analogue display or with PC-connection kit and PC software
SPECIFICATION VIEW
| Drive over load | 4,000 kg |
| Brake force | 4.5 kN (optional 6.0 kN or 10 kN) |
| Testing speed | 5 km/h |
| Drive power of motors | 2 x 3.0 kW (optional 2 x 4.0 kW or 2 x 5,5 kW) |
| Roller diameter | 205 mm |
| Track width | 800 - 2,200 (option 800 - 2,800) |
| Test load | at 50% braking 2.0t (option 2.6t und 4 t) |
| Fuse | 3 x 20 A inert |
| Power Supply | 3 x 400 V, N, PE 50 Hz |
| Dimensions roller set (W x L x H) | 2,320 x 680 x 240 (800-2,200 mm) mm |
