FEATURES

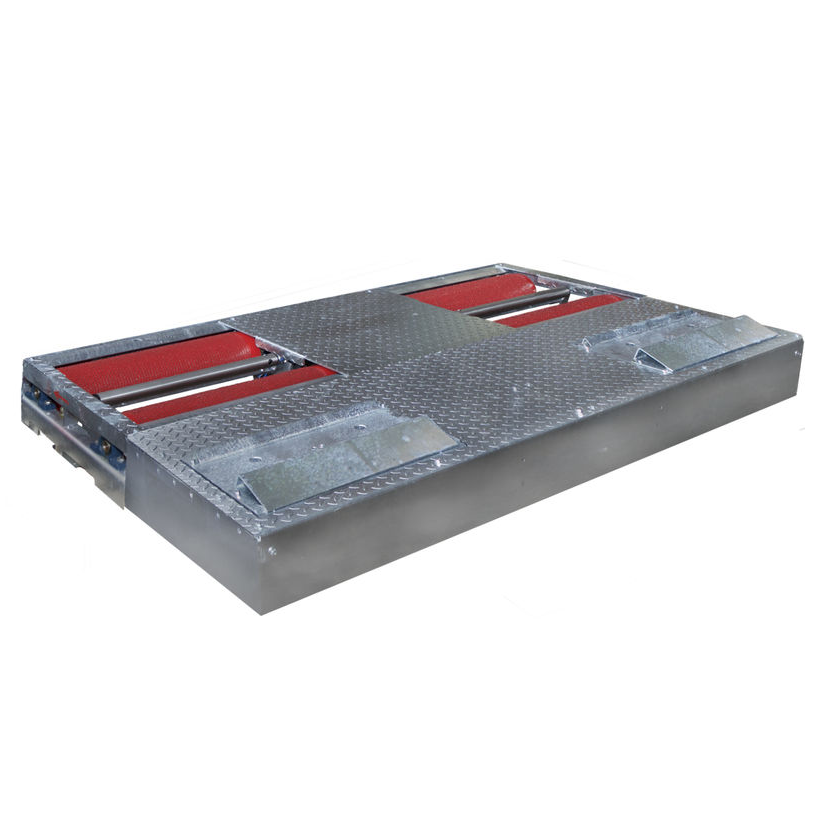

- Galvanized, enclosed roller set
- 205 mm rollers with welded profile surface
- Test width: 800 mm to 2200 mm (optional 800 - 2800 mm)
- Height adjustment screws
- Wear resisting electronic measuring system DMS
- 50 mm sensory rollers in stainless steel
- Prepared for retro-fitting of weighing device
- Modular system, all roller sets can be extended to test lanes
- Compact electric / switchbox, prepared for upgrade
- Drive-over axle load 4,0 to (optional 5 t)
- Brake force 4,5 kN (optional 6 kN)
- Equipped as standard with drive-off device
- Manual / Automatic mode
- Delayed switch-on, start-up monitoring
- Testing program for electronic parking brakes
- Lockable main switch
- Suspension tester Boge system, galvanized bottom group
- Galvanized test plates
- Large easily read analog display
SPECIFICATION VIEW
Drive over load | 4,000 kg |
Brake force | 4.5 kN / 6 kN (optional) |
Testing speed | 5 km/h |
Drive power of motors | 2 x 3.0 kW (optional 2 x 4.0 kW) |
Roller diameter | 205 mm |
Track width | 800 - 2,200 mm (option 800 - 2,800 mm) |
Test load | at 50% braking 2.0t (option 2.6t) |
