The robust construction of SMART LIFT, as well as its fully developed technique are the results of more than 10.000 units produced in one year and about 30 years experiences in lifts production.
LIFTING ARM VERSIONS
LIFTING ARMS FOR AN OPTIMUM DOOR CLEARANCE
• two times telescopic
asymmetric lifting arms
• lifting wide range of vehicle
• automatic arm adjustment
• lowest pick-up point from 75
mm
• short lifting arms with swiveling
180 degree

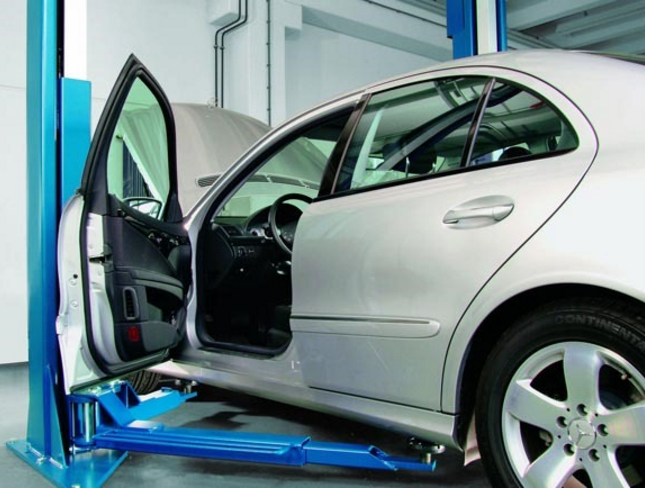

• Maximum of door clearance
DOUBLE TELESCOPIC LIFTING ARM
Short lifting arm with double
telescopic provides a large adjustable range and therefore possible to lift
short and width vehicles.
MINI-MAX LIFTING ARM
Adapter for low clearance
vehicle, as well as, for deep-drawn side skirt and off-road vehicles:
• enormous adjustable range of
75 - 185 mm
• multilevel quick adjustment
FEATURES
· Electronic synchronization system
· Vehicle door can be comfortably opened
· Durable serpentine drive belts
· Silent operation
· Two motors integrated into columns
· No obstructive base frame
· Premier lift for premier workshop
SPECIFICATION VIEW
| Lifting capacity | 3000 kgs |
| Lifting / lowering time | 40 sec |
| Lifting height | 2010 mm |
| Lowest lifting point | 95 - 140 mm |
| Total height column | 2882 mm |
| Total height top connection | 3720 - 4210 mm |
| Total width | 3000 mm |
| Drive through width | 2230 mm |
| Distance between column | 2460 mm |
| Long arm extraction | 940 - 1495 mm |
| Short arm extraction | 590 - 900 mm |
