ADIROC | QJY4.0-D5A


FEATURES

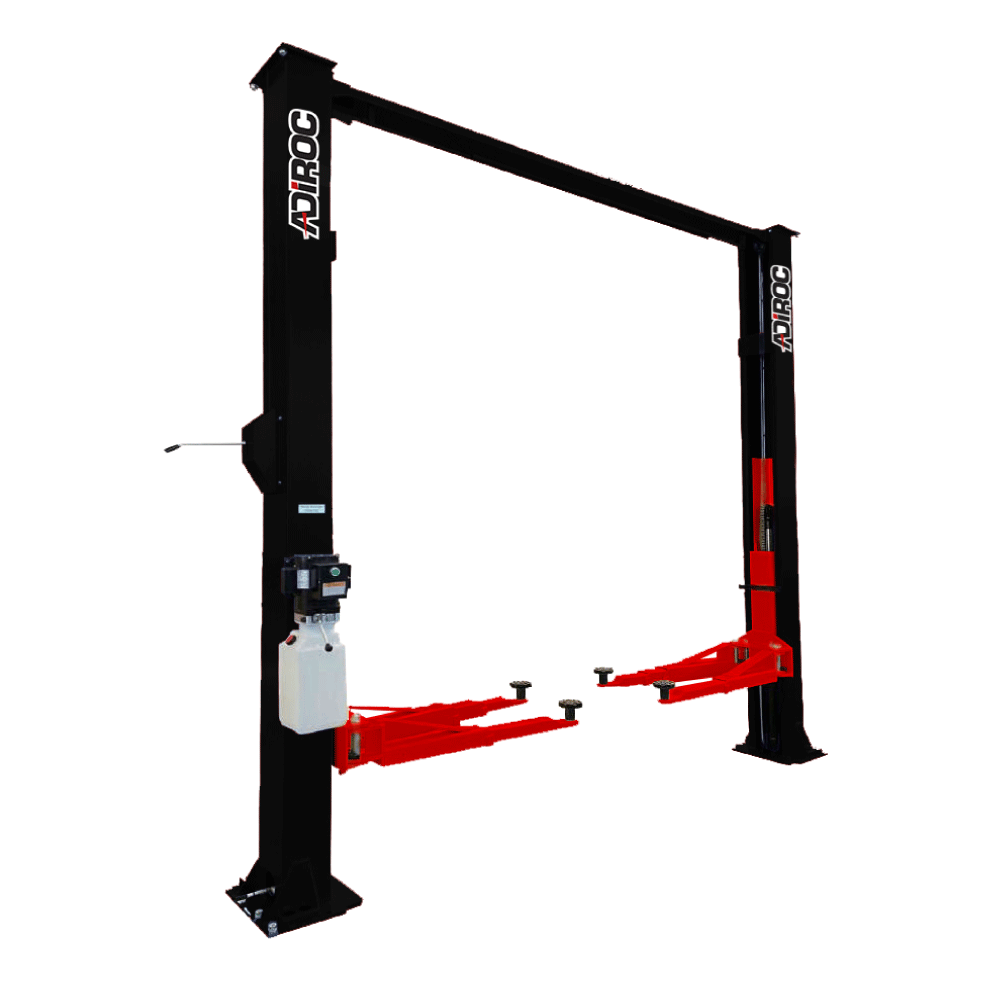

ADIROC ~~ QJY4.0-D5A TWO POST LIFT
- Manual one side lock release system
- Clear floor design make under-vehicle service more convenient
- Optional 24V power control box considers safety operation
- Top limit switch effectively avoid unexpected injuries and damages
- Dual hydraulic cylinder drive, stable lifting and lowering
- The optional triple stage arms combination make the lift can accommodate wide range of vehicles from smart to SUV, light van
- Adopt two steel cables for equalization, force two carriage to move synchronously

SPECIFICATION VIEW


Capacity : 3600kg
Min height : 95mm
Lifting height : 1928mm
Power of motor : 2.2kw
Power supply : 220v/380v
Width of the rack : 3432mm
Height of the rack :3664mm
Hydraulic oil : N46
Net weight : 645kg
