FEATURES
· Electro-hydraulic driven lift with chain lifting system.
· Synchronization of cylinders independent from load distribution with mechanical leveling system.
· Mechanical safeties automatic engagement and release
· Voluntary driven control
· Automatic arm locking
· Overload valve equipped
· Lowering speed control valve included 24V safety control.
· Anti-crushing protection

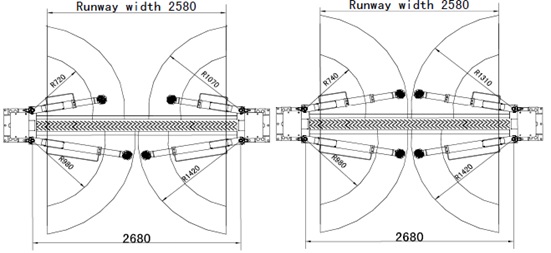

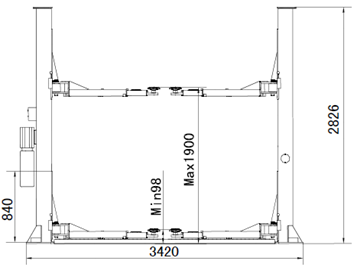

SPECIFICATION VIEW
| Lifting capacity | 4000 kg |
| Max. Lifting Height | 1900 mm |
| Min. Height | 98mm |
| Overall Height | 2826 mm |
| Lifting Time | 45 sec |
| Lowering Time | 50 sec |
| Electric Supply | 415 V / 50 Hz |
| Weight | 650 kg |
