SINO ITALIAN | STD6246TAD


FEATURES


· Symmetrical and asymmetrical (30 degrees) installation be possible.
· Different height option maximizes flexibility to service the different vehicle.
· Synchronization independent from load distribution carried out by steel cables.
· Mechanical safety of single point release.
· Full stroke cylinders minimizes the number of moving parts.
· High quality sliders of self-lubrication and free maintenance.
· Easy positioning of arm safety, automatic engagement and disengagement.
· 3-stage (front) and 2-stage (rear arm) gives the flexibility to service vehicles with different wheelbases.
· Double screwed adaptors allow to adjust the adaptor height quickly and easily.
· Pressure overload valve is equipped in power unit to protect damaging in the lift from being too high pressure.

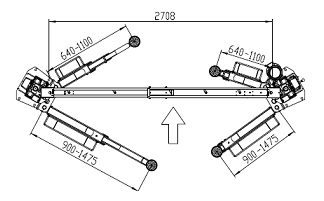

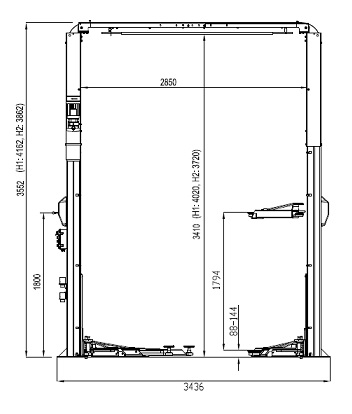

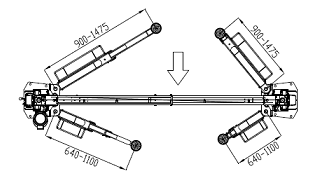

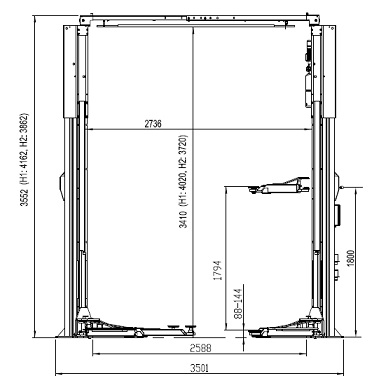

SPECIFICATION VIEW


Lifting capacity 4600 kg
Cylinder Stroke 1794 mm
Max. Lifting Height with no pad extension 1938 mm
Min Adaptor Height88 mm
Overall Height 3552 mm
Full Height Lifting Time 53 - 58 sec
Electric Supply 415 V/ 50 HZ/ 3 PH & 230 V/ 1 PH/ 50 Hz
