VERSIONS
• Flat runway

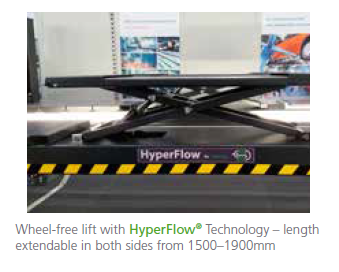

• PLUS – runway with wheel-free lift
• AMS – runway with mounted on wheel alignment set
• PLUS AMS – runway with wheel-free lift and wheel alignment set
FEATURES
• Powered by one hydraulic cylinder under the runway and 4 steel ropes
• High capacity power unit with submerged motor installed at the control column.
• Control panel with push-button.
• Very flat runways with short access ramps spare space in the workshop
• Adjustable runways width during the installation to different car‘s track width.
PERFECT FOR RELIABLE WHEEL ALIGNMENT
• High precision wheel alignment in every locking height thanks to the adjustable latch strip with 100 mm grid.
• The runways can be engaged in the next ratchet per push-button. So called flat plates bring the runways with sliding plates and with or without free wheel lift to a flat surface. Flat plates lay on the runways
without screws.
• Slip plates are mounted on roller bearings for an optimal stainless wheels for the wheel alignment: side wise +/- 50 mm / lengthwise +/ -1,5°.
SPECIFICATION VIEW
| Lifting capacity | 4000 kg |
| Jack lifting capacity | 2000 kg |
| Lifting / lowering time approx | 40/35 sec |
| Lifting height | 1976 mm |
| Lifting height AMS | 2008 mm |
| Runway length | 4830 mm |
| Usable runway length | 4600 mm |
| Runway width | 500 mm |
| Distance between columns | 834 - 984 mm |
| Drive-on height | 160 mm |
| Drive-on height AMS | 50 mm |
| Total height column | 2162 mm |
| Total length | 5950 mm |
| Total width | 3260 mm |
| Power requirement | 415V / 50HZ / 3PH |
