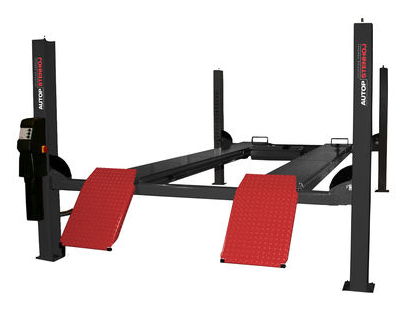

AUTOPSTENHOJ | MAJOR 4026



FEATURES


• Emergency stop valve
• Obstruction system
• Pneumatic parking system in height adjustable ratchets
• Pump and control unit on rear left post
• Pushbutton control unit with alarm signal
• Hydraulic cylinder under left platform
• Lifting and lowering by means of cables
• Emergency lowering valve

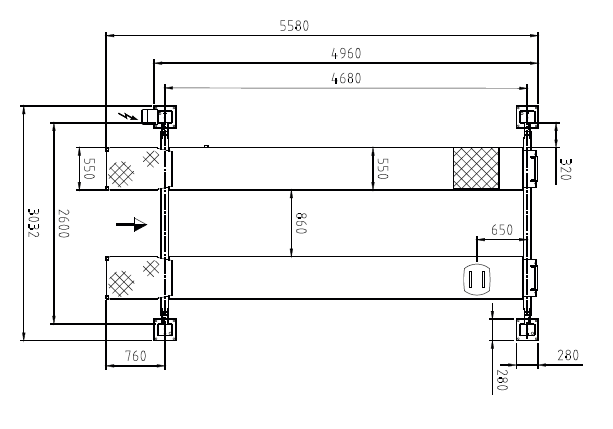

SPECIFICATION VIEW


Lifting capacity 4000 kg
Lifting height 1670 mm
Working height 1810 mm
Lifting / lowering time Standard 24 / 26 Sec
Platforms:
Total length
5060 / 5560 mm
Usable length of platform 4180 / 4680 mm
Platform width 500 mm
Distance between platforms 740 - 1030 mm
Min. height 140 / 160 mm
Width between posts 2600 mm
Total width - outer edges base plates 3022 mm
Total height 2233 mm
