FEATURES
· Homologated and certified product according to the European Directive EN1493:2010
· Electro-hydraulic operation with synchronization cables.
· Bolt-on alignment kit included as standard for alignment type
· A 2500 kg jacking beam included as standard for alignment type, with air pump operation
· Air locking release
· Two turntable recesses can accommodate any wheelbases of vehicles.
· A 24V control box included for CE version.
· Front wheel stops can easily be replaced by optional drive-off ramps.

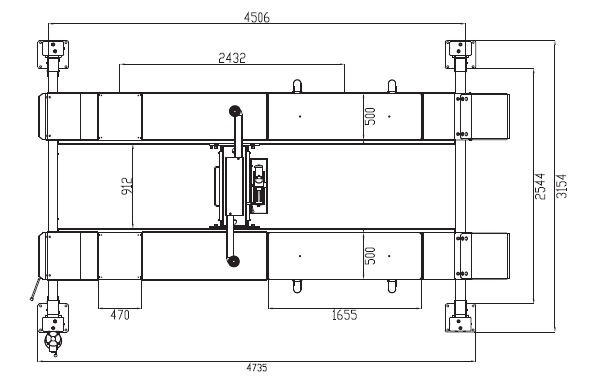

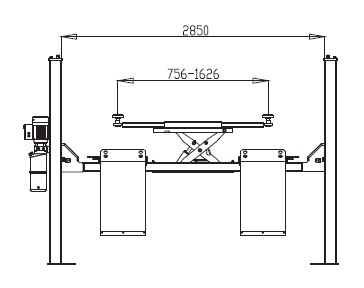

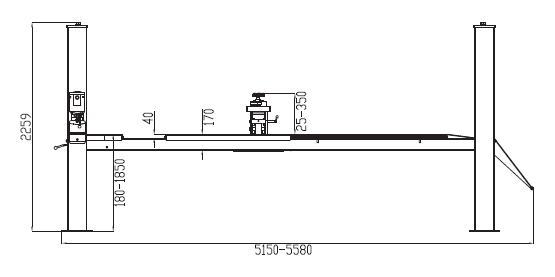

SPECIFICATION VIEW
| Lifting capacity | 4200 kg |
| Max. Raised Height | 1800 mm |
| Lowest Height | 130 mm |
| Runway Length | 4506 mm |
| Distance between 2 posts | 2850 mm |
| Raised Time | 60 sec |
| Electric Supply | 415 V / 3PH / 50 Hz |
