SINO ITALIAN | STD-9685YW

SINO ITALIAN  STD-9685YW MOBILE COLUMN  WITH WIRELESS SYSTEM

FEATURES

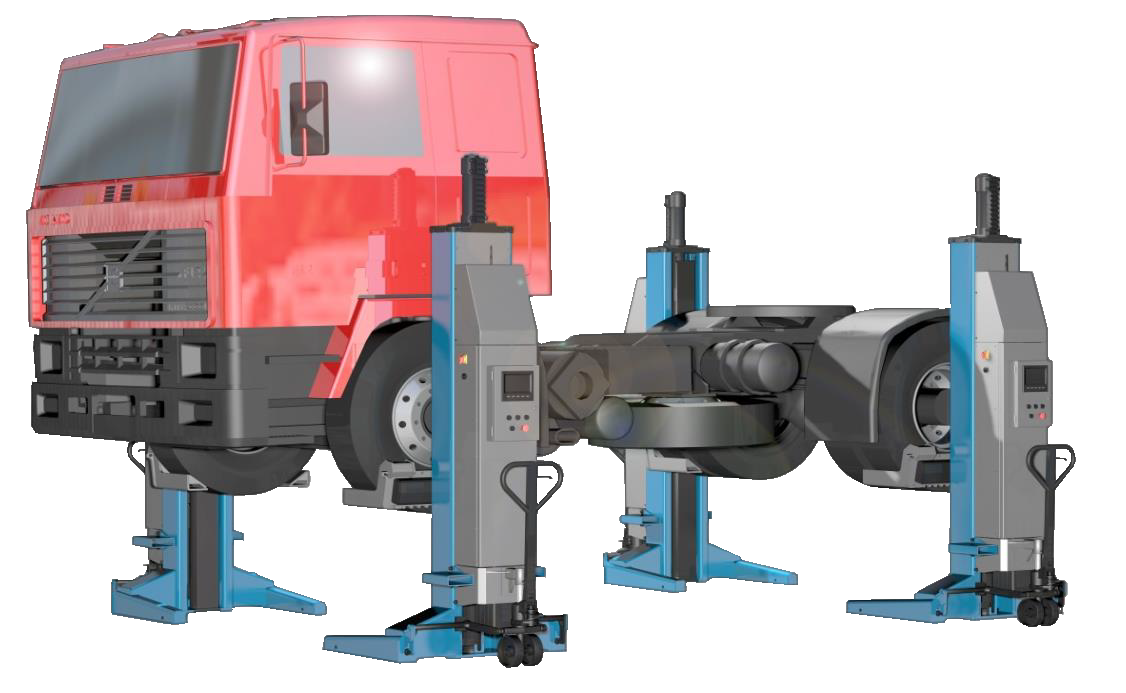

Lifting system can be combined with 2, 4, 6……12 columns, suitable to lifting trucks, buses, forklifts
DC power unit with wireless communication free of environment interference.
Advanced system with automatic lifting/lowering speed variety ensures super synchronization of all columns during lifting/lowering phase.
Each column can be set as master or slave for convenient positioning.

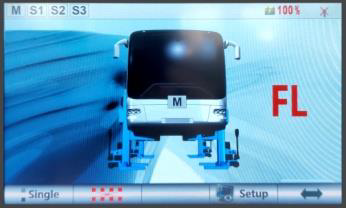

Touch screen with instruction make every operation easier.

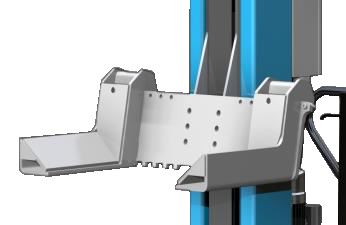

Adjustable forks are possible to accommodate different tire diameters.
Safety stops in case of malfunction.

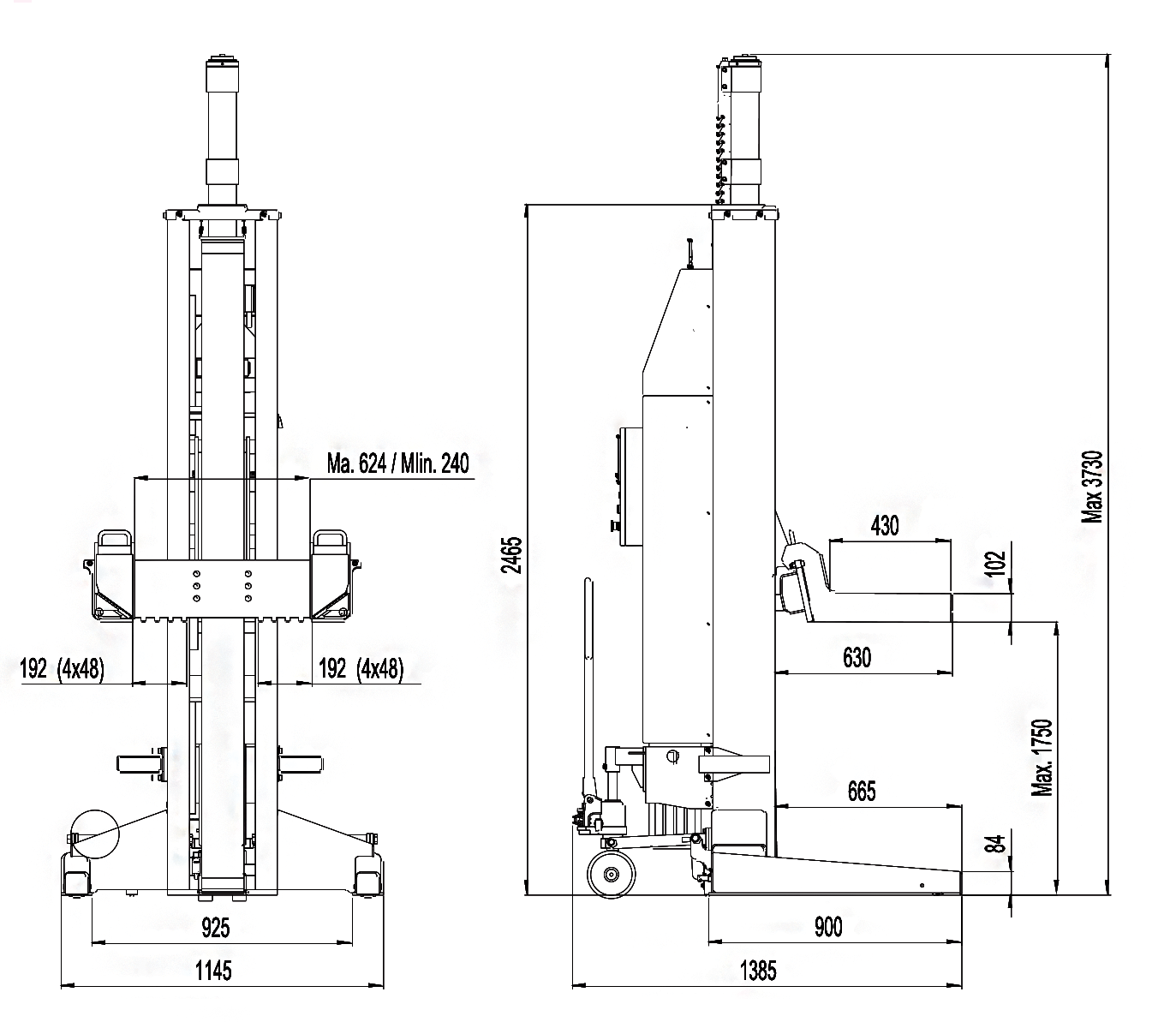

SPECIFICATION VIEW


Capacity/column : 8500kg
Lifting stroke :0 - 1750mm
Width between forks :240 - 624mm
Overall height : 3730mm
Lifting speed : 120s
Electric power : DC 24V
Weight : 810kg
