FEATURES
• Double master / slave system
• Control stand with integrated pump unit and alarm signal
• Electronic synchronization
• Emergency lowering valve
• Sturdy scissor construction
• No mechanical connection between scissor sections
• Optimum access to vehicle
• Low minimum height
Approvals:

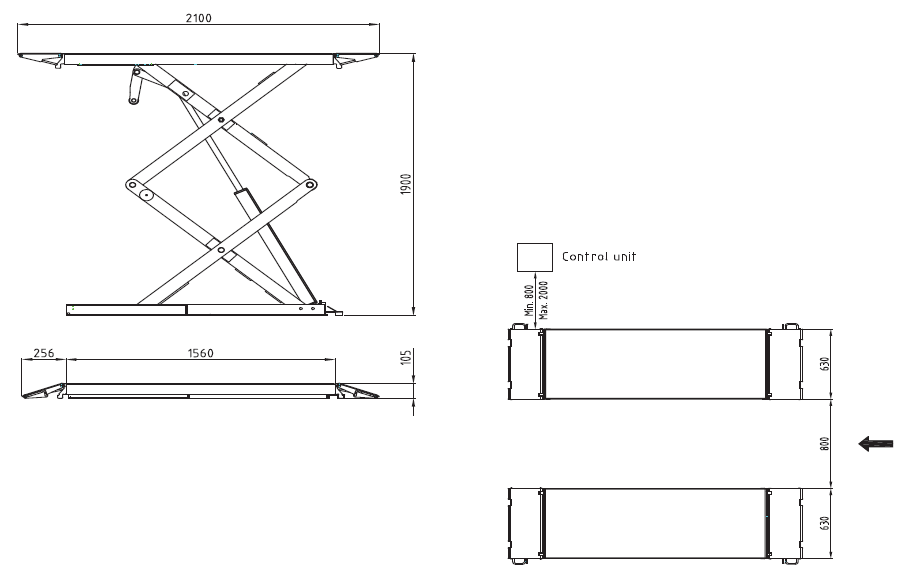

SPECIFICATION VIEW
Lifting capacity | 3500 kg |
Lifting height | 1795 mm |
Working height | HS:1900 mm | HI:1780 mm + Rubber pads |
Lifting / lowering time Standard | 44/44 Sec |
Scissor platforms: | |
Platform length |
HS:1560 - 2100 mm | HI:1526 - 2001 mm |
Platform width | 630 mm |
Distance between platforms | 800 mm |
Drive-on height | HS:105 mm | HI:0 mm |
Depth of recess | HS:0 mm | HI:110 mm |
