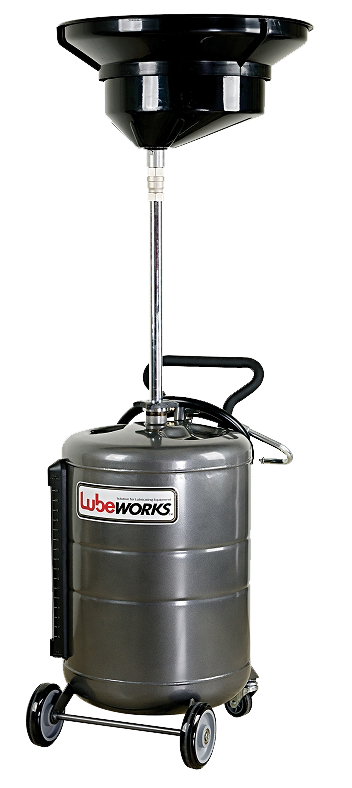

LUBEWORKS | 16207005


FEATURES


- Suitable devices to drain, by gravity, waste oil from engines, gear boxes and differentials of all vehicles.
- Air operated oil drainer with center mounted adjustable collecting bowl.
- Can be equipped with a special support to allow filters to drain.
- Hand wheel connecting seat easy to adjust the height of the oil collecting bowl.

SPECIFICATION VIEW


Tank Capacity :  70L / 18.4 gallon
Collection Bowl Capacity :  18L / 4.8 gallon
Collection Bowl Diameter :  400mm / 16”
Maximum Height : 1700mm / 67”
Minimum Height :  1200mm / 47.2”
Extention Funnel Diameter :  606mm / 23.8”
Max. Draining Pressure : 0.5bar / 7.5psi
Draining Hose Length ;  1600mm / 63“
Air Inlet Connection : 1/4” quick plug
Weight : 35kgs / 77lbs
Packaging Dimension :  460 x 460 x 1000 mm
