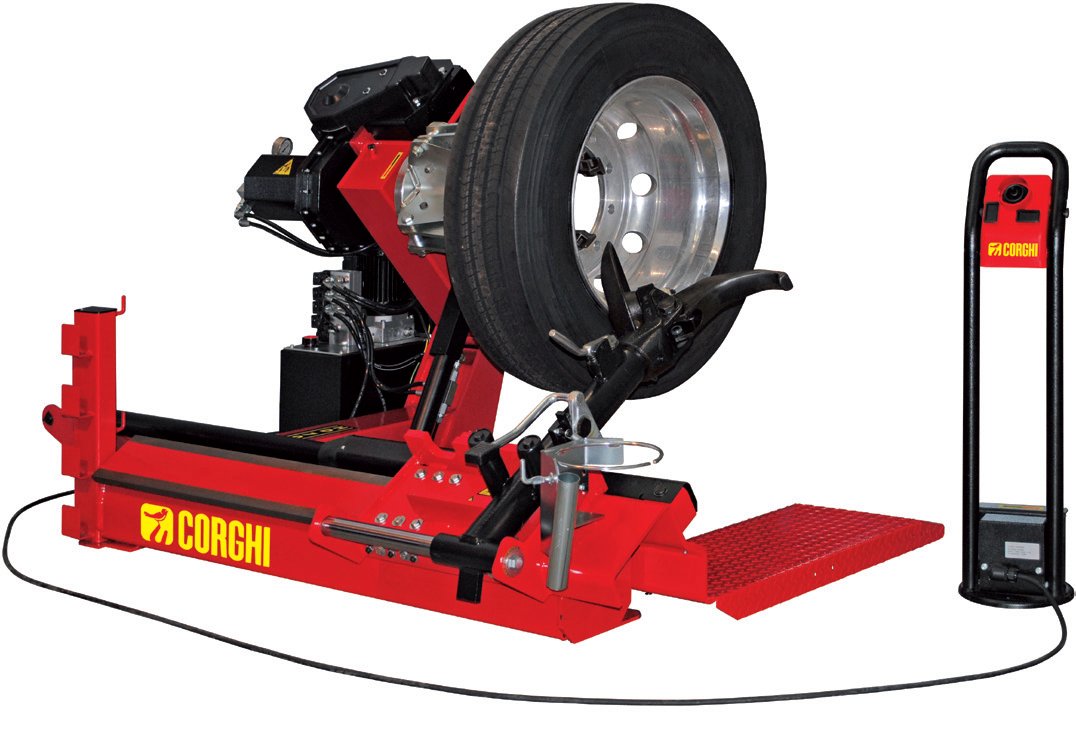

ELECTROHYDRAULIC TYRE CHANGER for trucks, buses, tractors and earth moving equipment with groove or elastic ring type rim wheels and with tubeless or inner tube type tyres.
FEATURES
• Control module with ergonomic controls.
• Turntable spindle for clamping rim sizes from 14” to 26” with clockwise and anticlockwise rotation
• clamps with plastic insert for alloy rims (optional)
• Hydraulic power unit
• Carriage with hydraulic left-right translation and tool arm with safety lock system
• The HD 700 is capable of handling wheels weighing up to 700 KG
SPECIFICATION VIEW
| Chucking device capacity | 14" - 26" |
| Max wheel width | 700 mm |
| Max wheel diameter | 1600 mm |
| Unit motor | 1.1 Kw |
| Gear box motor | 3PH 1.5Kw |
| Tyre changer weight | 565 kg |
| Max wheel lifter capacity | 700 kg |
| Cylinder load capacity | 1200 kg |
