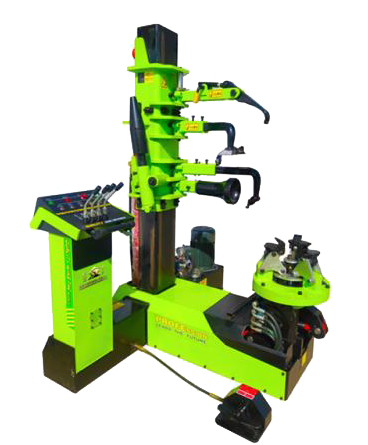

ADIROC | ZHDBJ-610 FULLY AUTOMATIC VERTICAL TYRE CHANGER

ADIROC | ZHDBJ-610 FULLY AUTOMATIC VERTICAL TYRE CHANGER

FEATURES

  • One-Touch Operation
  • Automates tire mounting and removal with precision.
  • Customizable Settings
  • Supports various tire models for seamless operation.
  • User-Friendly Design easy handling.
  • Tire Compatibility
  • Fits 15”/16”/17.5”/22.5”/24.5” vacuum tires for light trucks, buses,
  • and trucks.
  • Compatible with 15”/16”/18”/20” beaded tires with inner tubes.
  • Handles tires up to 1300mm diameter and 500mm width.
  • Durable & Stable Reinforced Components
  • Stronger than previous models for longer life.
  • Heavy-Duty Build
  • Weighs 696kg, 130kg heavier than standard models for extra stability.
  • Maintenance-Free Track
  • Retractable base with built-in slide for smooth, maintenance-free
  • performance.
  • High-precision design minimizes wear and ensures reliability.
  • Space-Saving Structure
  • Works in tight spaces with ease.
  • Tire-Friendly Operation
  • Prevents damage during mounting and removal.

SPECIFICATION VIEW


Rated Voltage:380V/3PH/50Hz
Rated Power:3Kw
Rated Current:6.5A
Working Oil Pressure:10-12Mpa
Rotation Speed:> 8 laps/minute
Applicable Tire Types:Tubeless and tubeless tires
Applicable Steel Ring Diameter:12-24.5”
Applicable Maximum Tire Diameter:1300mm
Applicable Maximum Tire Width:500mm
Center Hole Diameter:120-320mm
Overall Dimensions :1480 x 1130 x 1800mm
Noise:70db
Net Weight:683kg
Pallet Size & Weight:1550 x 1130 x 1950 mm
                     703kg
