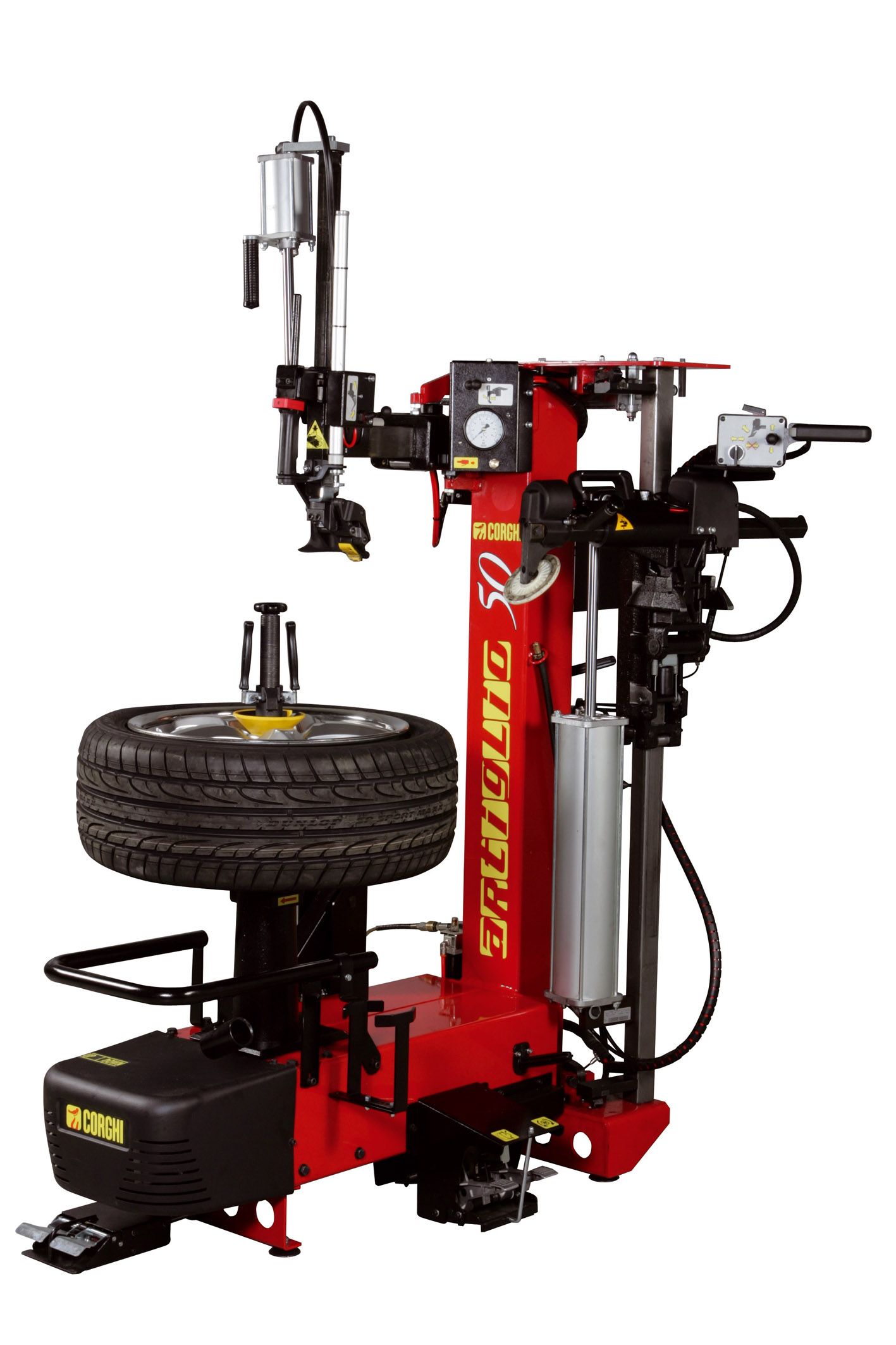

The ARTIGLIO 50 is an evolution of the automatic tyre changer featuring the “leva la leva” technology, the ideal for car, SUV and light trucks wheels up to 30”. Thanks to the “Leva la Leva” technology all physical efforts and risks of damaging particularly delicate or demanding rims and tyres have been cut out. At the same time, working times on all latest-generation wheels (from low profile to all run flat types) are slashed. The meticulous design of every single component makes the ARTIGLIO 50 compact, with highly ergonomic working heights and control layouts, introducing new standards such as the single-arm bead breaker unit with 180° swing, or the “Easy To Fit” concept for quick, effective maintenance.
FEATURES
SPECIFICATION VIEW
| Wheel dimension range | |
| Rim diameter | 12" - 30" |
| Max tyre diameter | 1200 mm (47") |
| Max tyre width | 15" (from wheel supporting base) |
| Tyre types processed | conventional, low profile, run flat |
| Turntable | |
| Clamping | mechanical-manual |
| Drive system | 2 speed motoinverter |
| Rotation torque | 1100 Nm |
| Rotation speed | 7 - 18 rpm |
| Bead breaker | |
| Max bead breaking range | 670 mm |
| Bead breaker stroke | 540 mm |
| Bead breaker force | 7600 N |
| Wheel loading / unloading | |
| Operation | Pneumatic |
| Max wheel weight | 85 kg |
| Power supply | |
| Electric 1PH | 230V - 0.98 kW 50/60 Hz |
| Electric 1PH (alternative) | 110V - 0.98 kW 50/60 Hz |
| Pneumatic operating pressure | 8 bar (minimum) |
| Weight | 310 kg (with wheel lifter) |
