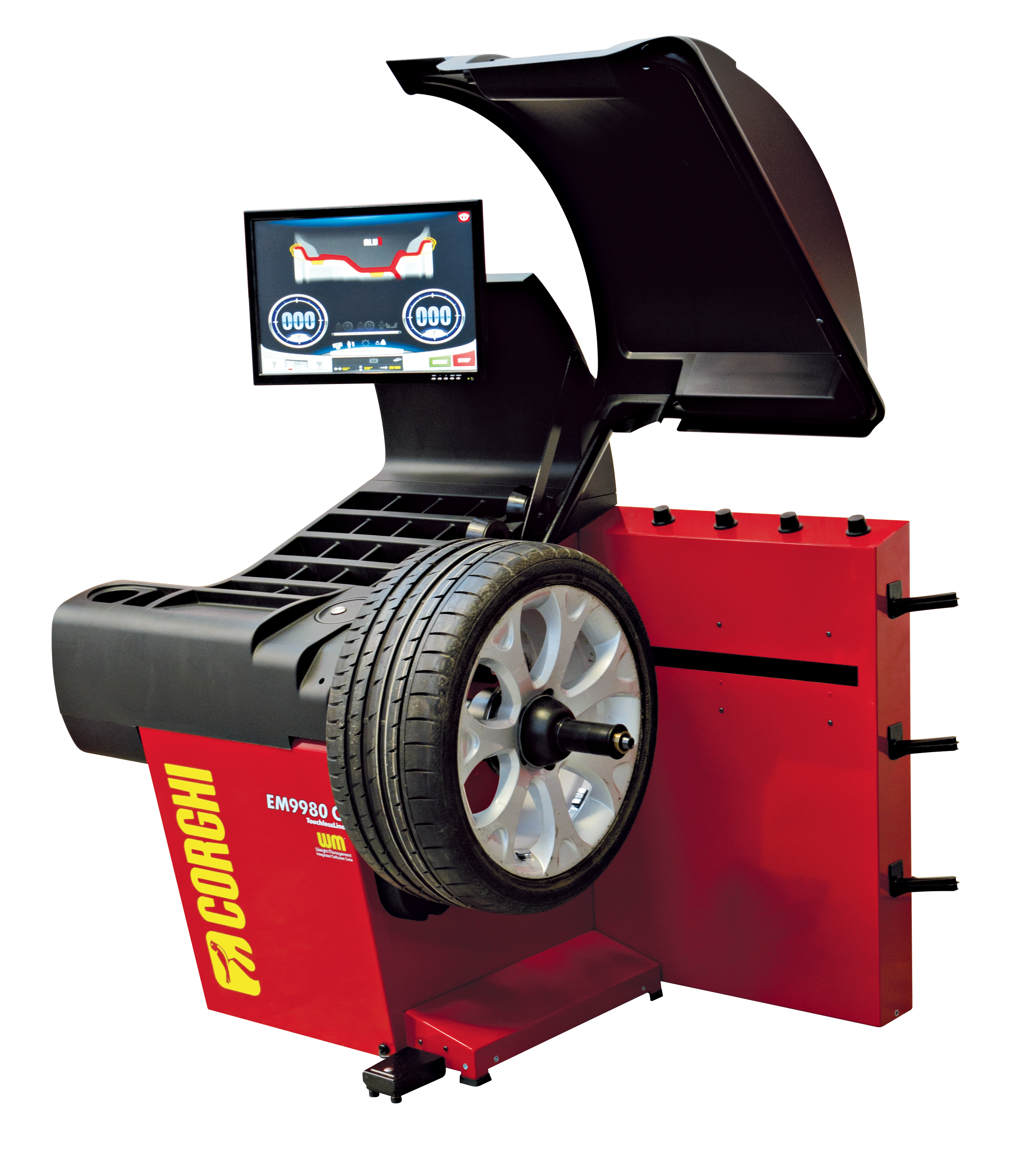

Super-automatic diagnostic wheel balancer that works without ever touching the wheel.
FEATURES
TOUCHSCREEN INTERFACE
Touchscreen interface The graphic interface and touchscreen technology simplify and speed up operations and work programme selection.
WHEEL DIMENSION MEASUREMENT WITH TOUCHLESS SYSTEM
High precision laser sensors automatically measure all wheel dimensions in a few seconds during the measurement cycle.

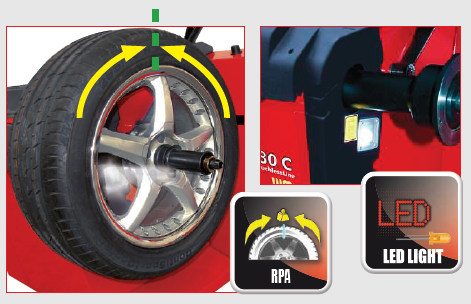

AUTOMATIC POSITIONING AND LED ILLUMINATOR
At the end of the spin cycle, the wheel is braked and brought automatically into the balancing position (RPA). The integrated LED light illuminates the work area to facilitate rim cleaning and application of the counterweights.

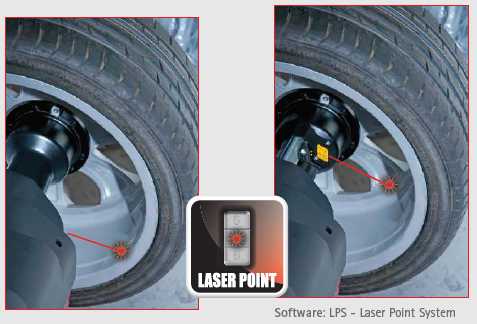

ADHESIVE COUNTERWEIGHT APPLICATION
The internal point laser pointer indicates the correct position for applying the adhesive counterweights with absolute precision.
MULTIFUNCTION (ONE-TOUCH) BUTTON AND WEIGHT TRAY
Ergonomic and functional weight holder top with large trays for different types of counterweights and tools.
One-Touch multifunction button - Makes selecting the work programmes available simpler and quicker.

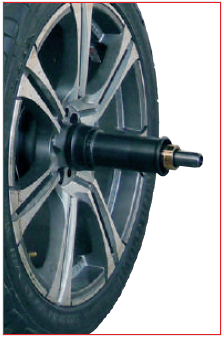

AUTOMATIC WHEEL CLAMPING
New automatic electromechanical wheel clamping system, which cuts operating times and increases centering precision.
LASER RUN-OUT MEASUREMENT
High-precision measurement of radial and lateral wheel run-out (1st harmonic and peak-to-peak) and calculation of the best coupling of parts, resolving the typical problems of road vibration.
SPECIFICATION VIEW
| Balancing speed | 75-85-98 rpm |
| Max. unbalance value calculated | 999 g / 35.3 Oz |
| Average measurement time | 7 s (14 kg wheel) |
| Shaft diameter | 40 mm / 1.57" |
| Rim width setting range | 1.5" - 20" |
| Rim diameter setting range | 1" - 35" |
| Rim diameter measurement range | 10" - 32" |
| Max. wheel width (with guard) | 600 mm / 23.6" |
| Max wheel diameter (with guard) | 1118 mm / 44" |
| Max wheel / machine distance | 275 mm / 10.82" |
| Max wheel weight (ground fastening) | 75 kg |
